Datasheet

The Joulescope JS320 & JS220 Evaluation Kit 1 (EVK) provides a quick and easy way to get started measuring real waveforms with your Joulescope. The goal of the EVK is to toggle signals to vary the load. Your Joulescope will measure this change and display the current waveform in the Joulescope UI.

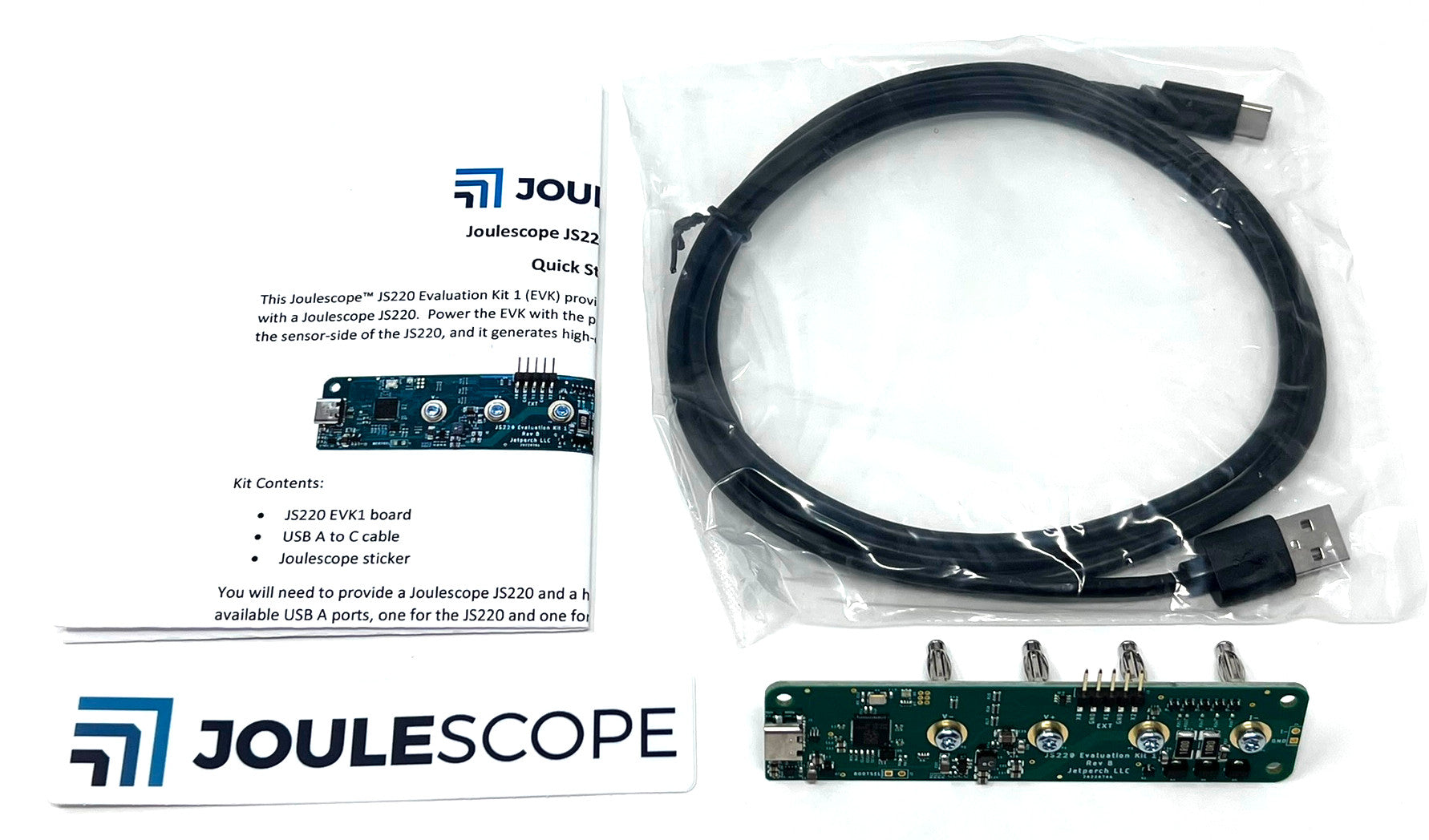

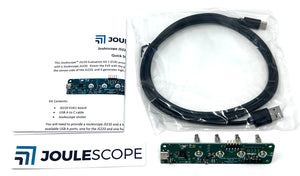

The EVK includes:

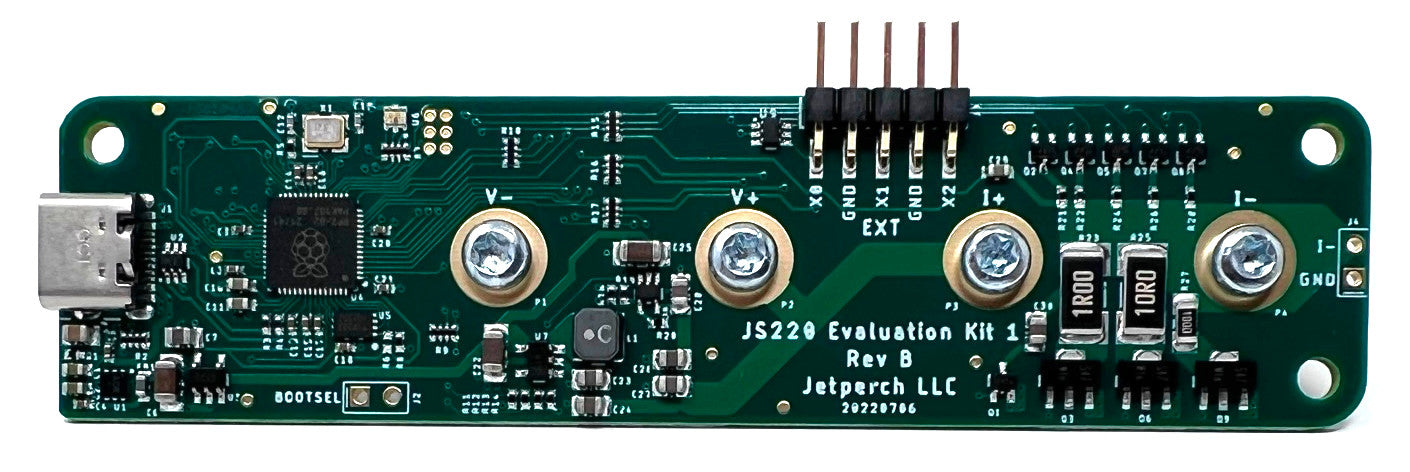

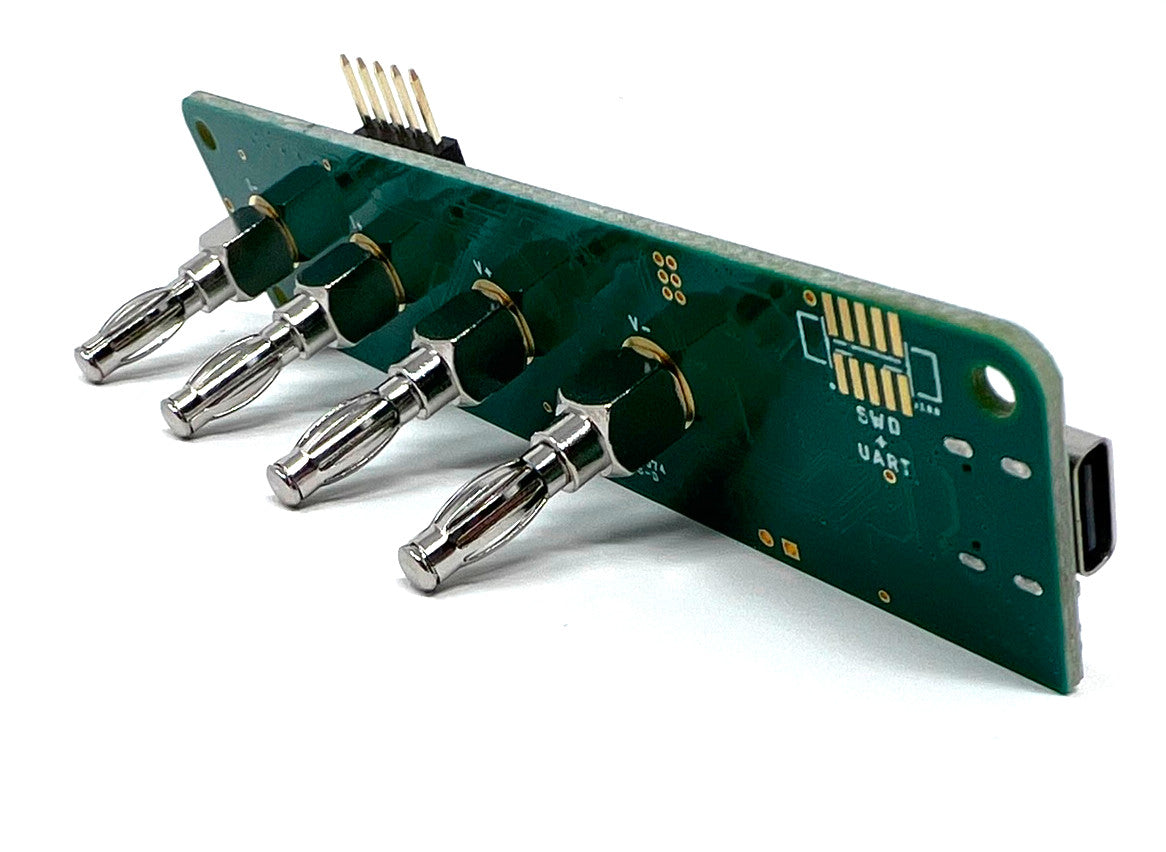

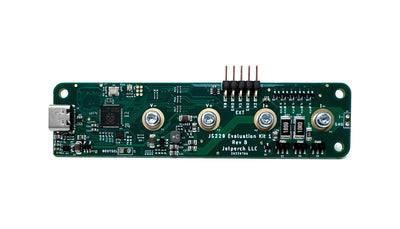

• EVK board
• 5' USB A/C cable
• Joulescope Sticker
• Quick Start Guide

For more details, see the open-source hardware and software.

Compatible with:

• JS320
• JS220
