JS220 Banana Jack JS110-style Front Panel

JS220 Banana Jack JS110-style Front Panel

Regular price
$39.00
Sale price
$39.00
Shipping calculated at checkout.
You can also purchase from our authorized distributors.

Datasheet

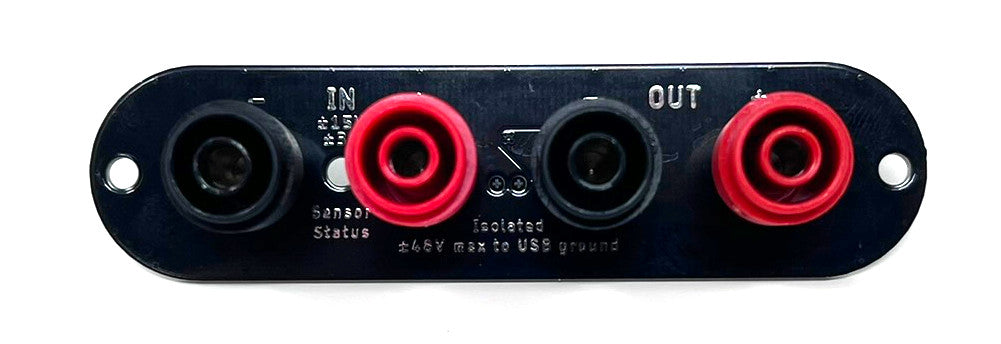

The Joulescope JS220 banana jack front panel supports standard 4 mm banana jumper cables and safety banana jumper cables.

This front panel functions like the Joulescope JS110's standard front panel with IN +/- and OUT +/-.  In contrast, the JS220 normally comes with CURRENT +/-  and VOLTAGE +/-.  If you want to make the JS220 into an exact drop-in replacement for the JS110, then this is your front panel.

The JS220 includes the 2 mm Allen wrench used to swap the front panel. To swap the front panel, remove 2 screws, remove the bumper, unplug the existing front panel, plug in the new front panel, fit the bumper, and replace the screws.
